Best Garage Door Opener Repair For Heavy-Duty Doors In Gilbert
A heavy door rarely kills an opener by being heavy. It kills the opener by being out of balance, which means the new opener dies the same way the old one did.
Above All Garage Door Service repairs and specifies openers for heavy Gilbert doors — three-car spans, insulated steel, and wood-overlay carriage doors in Val Vista Lakes, Seville, Whitewing and the Higley and Williams Field corridor. We correct the spring balance first, then the opener, because the other order does not hold. Arizona licence ROC338265, bonded and insured, working the Valley since 2012. Call (480) 405-0909.
- 5.0 stars from 49 Google reviews
- AZ ROC licensed and insured, license ROC338265
- Written price before anything is touched
- Nate C. wrote this
The opener is usually the victim
A correctly balanced door is nearly weightless to the opener, no matter what it weighs. Disconnect the opener on a 400 pound wood-overlay door that is properly sprung and it will sit where you leave it. The springs carry the door; the opener only overcomes friction and starts the motion.
When the springs are undersized, mismatched or fatigued, the opener starts carrying real weight on every cycle. The gear strips, the trolley wears, the capacitor cooks. Fit a new opener without correcting the springs and you have bought roughly eighteen months before the same failure, at the same cost.
The balance test, done properly
Close the door fully. Pull the emergency release cord so the opener is disconnected — and only with the door closed, because releasing a raised door with a broken spring drops it hard. Lift the door by hand to about waist height and let go.
A balanced door holds within a couple of inches. If it sinks, it is under-sprung and the opener has been compensating. If it climbs, it is over-sprung, which is harder on the top section and the cables than most people realise. The effort to start the lift should feel like about ten pounds; on a heavy door that is noticeably light, and if it is not, the springs are the job.
Horsepower is marketing. Torque and duty are the spec
Half, three-quarter and one-and-a-quarter horsepower are useful labels and nothing more. What matters on a heavy door is sustained torque, the duty rating, and whether the drive is a belt or a chain. DC motors with soft start and soft stop are easier on a heavy door than older AC units, because the shock load at each end of travel is what breaks hardware.

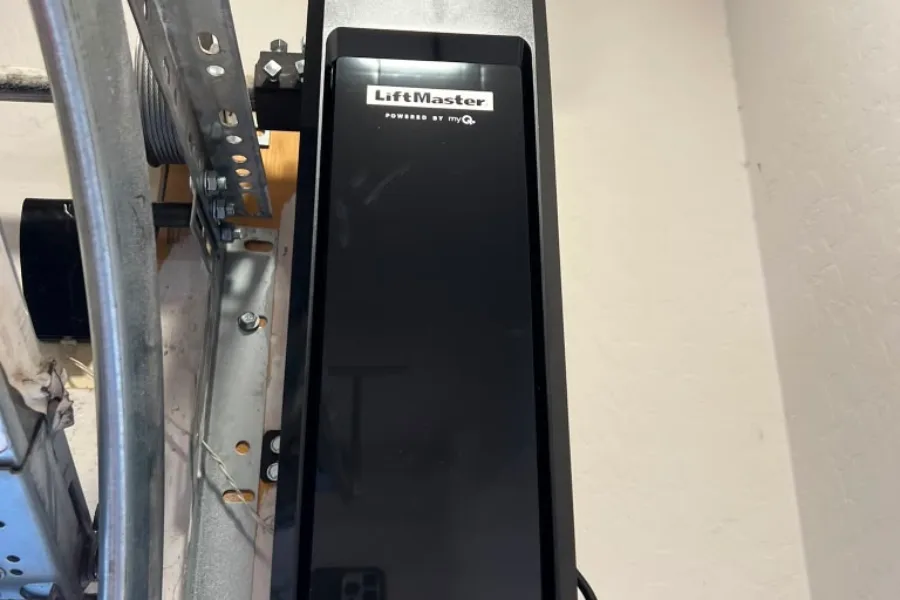

On a three-car door, a wall-mounted jackshaft operator is very often the right answer rather than a bigger ceiling unit. It drives the torsion shaft directly, it suits tall or awkward headroom, and it frees the ceiling — which matters in the many Gilbert garages that have overhead storage racks fitted.
What heavy doors break, in order
The plastic drive gear and sprocket go first, because they take the torque. Then the trolley or carriage. Then the bottom rollers and hinges, which carry the weight through every cycle and wear oval. Lift cables stretch, and on a heavy door they rarely stretch evenly, which drags one side and racks the panel.
A wide top section without a reinforcement strut flexes at the opener bracket until it cracks, and the motor itself is usually the last thing to actually fail. If a contractor opens with the motor, they are reading the list backwards.
What is particular about Gilbert

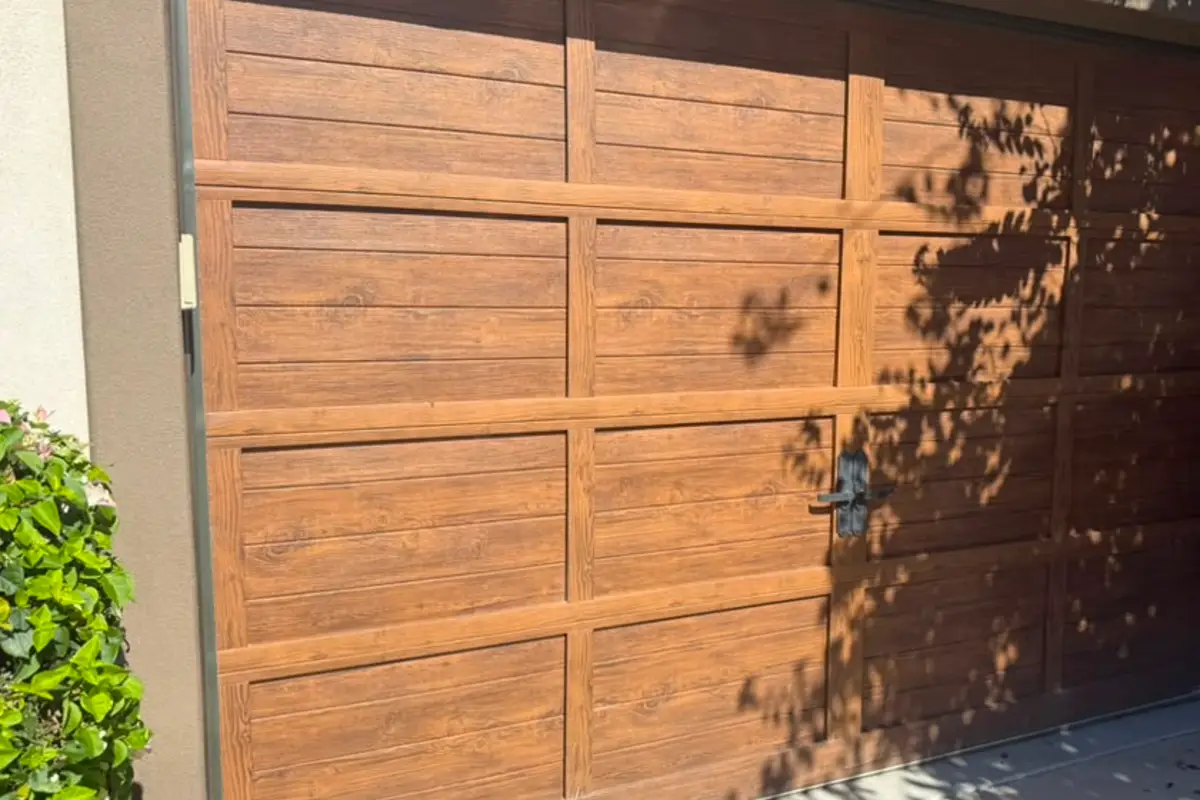

Gilbert’s newer builds brought wide lots and three-car garages, with insulated steel and wood-overlay carriage doors on the heavier end of residential. Two local conditions shorten hardware life on them. Desert landscaping puts fine grit into the tracks and roller bearings, which raises friction and makes an opener work harder than the balance test suggests.
And the opener head sits in a garage ceiling that reaches well above 140 degrees in July, which is hard on capacitors and logic boards. Lubricating rollers and hinges twice a year and keeping the balance correct does more for a heavy door than any amount of extra horsepower.
Asked by Gilbert homeowners
Heavy-door questions we get
My door is heavy. Do I need a bigger opener?
Usually not. Check the balance first. A properly sprung heavy door needs no more opener than a light one, and a bigger motor fitted over bad springs just breaks more expensive parts.
Is a wall-mount jackshaft opener better for a three-car door?
Often yes. It drives the torsion shaft directly, handles heavy and tall doors well, and keeps the ceiling clear for storage racks. It needs adequate side room at the shaft, which we check on site before recommending it.
Belt or chain on a heavy door?
A reinforced belt on a DC motor with soft start is quieter and kinder to the hardware. Chain is not wrong on a heavy door, but it transmits more shock at each end of travel, which is what wears brackets and top sections.
How much is spring replacement on a heavy door?
Torsion spring replacement runs 180 to 290 dollars for the common sizes. Heavy or oversized doors can need a specific wire size and length, and in that case we confirm the spec from the shaft before quoting rather than guessing.
Can you add a strut to a sagging top section?
Yes, and on a wide heavy door it is one of the better value repairs. A horizontal strut stops the top section flexing at the opener bracket, which is what cracks panels and pulls brackets loose.
Heavy door working the opener too hard?
Call and describe what the door does when you lift it by hand with the opener released. That one answer tells us whether this is a spring job, an opener job, or both, before anyone quotes you.
